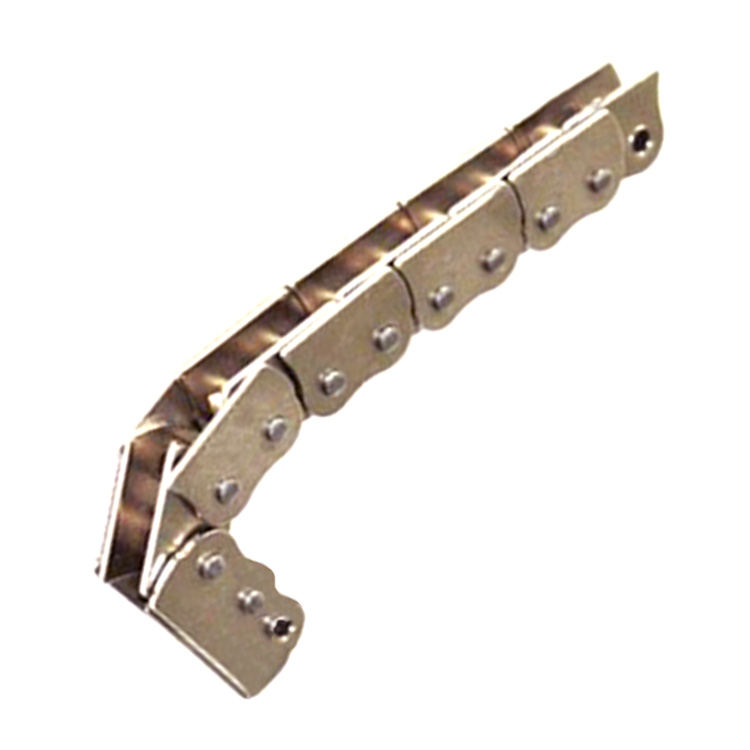

Steel detachable chain

Steel detachable chain

Categories: , Tag:

Description





Chain No. P L Z W D B N T Q
mm mm mm mm mm mm mm mm KN
25 22.96 17.86 11.12 10.72 6.08 4.83 1.6 1.85 3.38
32 29.39 23.81 15.5 15.08 6.35 6.1 2.03 2.3 5.87
32W 29.39 27 15.5 15.08 6.35 6.1 2.16 2.4 5.87
T32 29.39 28 16.9 16.5 6.35 6.1 2.16 2.4 5.87
42 34.93 30.96 20.32 19.34 7.75 7.49 2.41 2.67 7.47
45 41.4 30.96 20.5 19.84 10 8.51 2.41 2.7 7.47
51 28.78 27.78 18.29 17.88 8.35 6.1 2.29 2.67 7.47
52 38.3 35.71 21.9 21.44 8.38 8.13 2.79 3.1 9.61
55 41.4 32.54 20.65 20.22 8.76 8.51 2.92 3.15 9.96
62 42.01 39.69 25.45 24.94 9.14 9.02 3.51 3.75 15.66
62A 42.27 49.21 25.45 24.94 9.14 9.02 4.06 4.37 17.79
62H 42.01 47.62 25.45 24.99 9.14 9.02 3.66 3.75 16.01
67H 58.75 47.62 28.19 27.76 12.95 12.7 4.44 4.7 19.57
67XH 58.75 47.62 28.19 27.76 12.7 10.16 4.83 5.08 24.46
72 57.15 49.21 28.19 27.76 11.56 11.3 4.06 4.37 17.79
