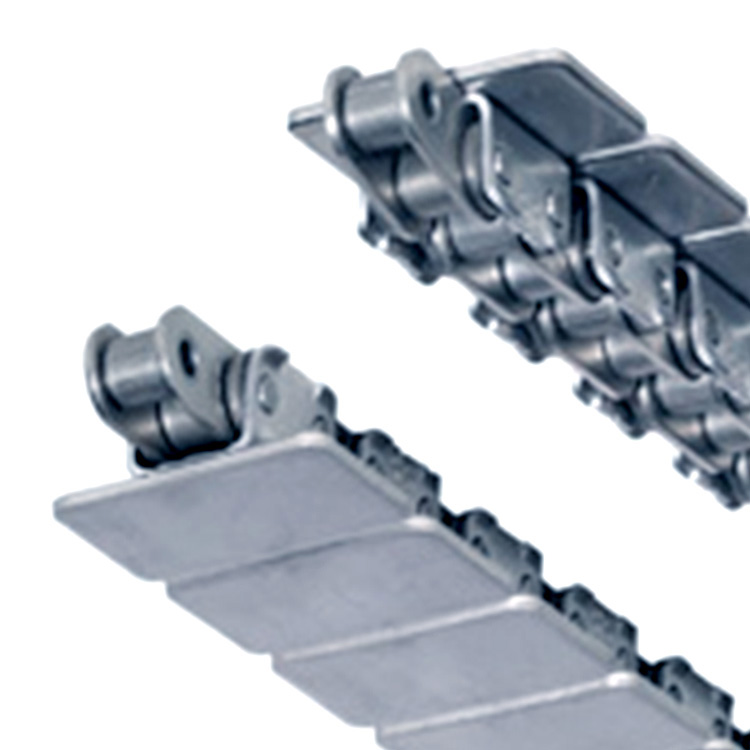

Stainless steel flat-chain for conveyor

Stainless steel flat-chain for conveyor

Categories: , Tag:

Description

Chain No. Pitch Slat width Width over fixed curls pin dia Slat thickness Curl outside dia Breaking load Max working load Weight per meter
P b2 b1 d2 T d1 max 1Cr18 Ni9Ti 1Cr18 2Cr13 1Cr18 Ni9Ti 1Cr18 2Cr13 q
min min max max
mm mm mm mm mm mm kN kN kN kN kg/m
C12S 38.1 76.2 42 6.35 3.1 13.13 8 6.25 3.2 2.5 2.39
C13S 86.2(82) 2.55
C14S 88.9 2.7
C16S 101.6 2.99
C18S 114.3 3.29
C20S 127 3.59
C24S 152.4 4.17
C30S 190.5 5.06
C30D 190.5 80.5 6.35 3.1 13.13 16 12.5 6.4 5 5.87
 25.4-CS54 25.4 54.5 42 6.35 3.1 13.13 8 6.25 3.2 2.5 2.26
25.4-CS63 63 40.5 2.55
25.4-CS71 71.5 42 2.79
25.4-CS75 75 2.87
25.4-CS82
82 2.94
25.4-CS88 88 3.08
25.4-CS98 98 3.3
36-CS80 36 80 2.58
36-CS90 90 2.79
38.1-CS53 38.1 53 2.04
38.1-CS65 65 2.32



Chain No. Pitch Slat width Width over fixed curls pin dia Slat thickness Gearing culs dia Sideflex radius Float-prevention tab details Breaking load Max working load
P b2 b1 d2 T d1 max R min H l1 l2 α 1Cr18 Ni9Ti 1Cr18 2Cr13 1Cr18 Ni9Ti 1Cr18 2Cr13
min min max max
mm mm mm mm mm mm mm mm mm mm mm kN kN kN kN
CC13SA
38.1 82.6 42 6.35 3.1 13.8 460 7.2 5.6 2.6 2
CC13SB 38.5 43 11 6.5°
CC13SC 56 16.2
CC14SA 38.1 88.9 42
CC14SB 38.5 43 11 6.5°
CC14SC 56 16.2
CC16SA
38.1 101.6 42
CC16SB 38.5 43 11 6.5°
CC16SC 56 16.2
CC18SA 38.1 114.3 42
CC18SB 38.5 43 11 6.5°
CC18SC 56 16.2
CC24SA 38.1 152.4 42 600
CC24SB 38.5 43 11 6.5°
CC24SC 56 16.2
CC30SA 38.1 190.5 42
CC30SB 38.5 43 11 6.5°
CC30SC 56 16.2



Chain No. Pitch Slat width Slat thickness Backflex radius Max working load Weight per meter
P A T R1 min q
mm mm mm mm kN kg/m
PC10S 38.1 63.5 4 50 1.23 0.69
PC13S 82.6 0.82
PC14S 88.9 0.87
PC16S 101.6 0.95
PC18S 114.3 1
PC24S 152.4 1.2
PC30S 190.5 1.44

Chain No. Pitch Slat width Slat thickness Sideflex radius Backflex radius Max working load Weight per meter
P A A T R1 min q
mm mm mm mm mm kN kg/m
PC10S 38.1 82.5 4 457 50 2.1 1.15
PC13S 114.3 1.3





Chain No. Slat width Slat thickness pin dia Max working load
W T D kN(max)
mm mm mm 304 1Cr13
GB ISO GB ISO /2Cr13
C08S 53 3 3.15 6 6.35 3.8 2.6
C10S 63.5
C11S 66.8
C12S 76.2
C13S 82.6
C14S 88.9
C16S 101.6
C18S 114.3
C20S 127
C24S 152.4
C30S 190.5

Chain No. Slat width Sideflex thickness Slat thickness pin dia Max working load GC
W R T D kN(max)
mm min GB ISO GB ISO 304 mm mm
CC13SB 82.6 460 3 3.15 6 6.35 3 44.5 41.4
CC18SB 114.3 500
CC24SB 152.4 500
CC30SB 190.5 500
CC13SC 82.6 460 3 3.15 6 6.35 3.5 46 44.2
CC18SC 114.3 500
CC24SC 152.4 500
CC30SC 190.5 500
