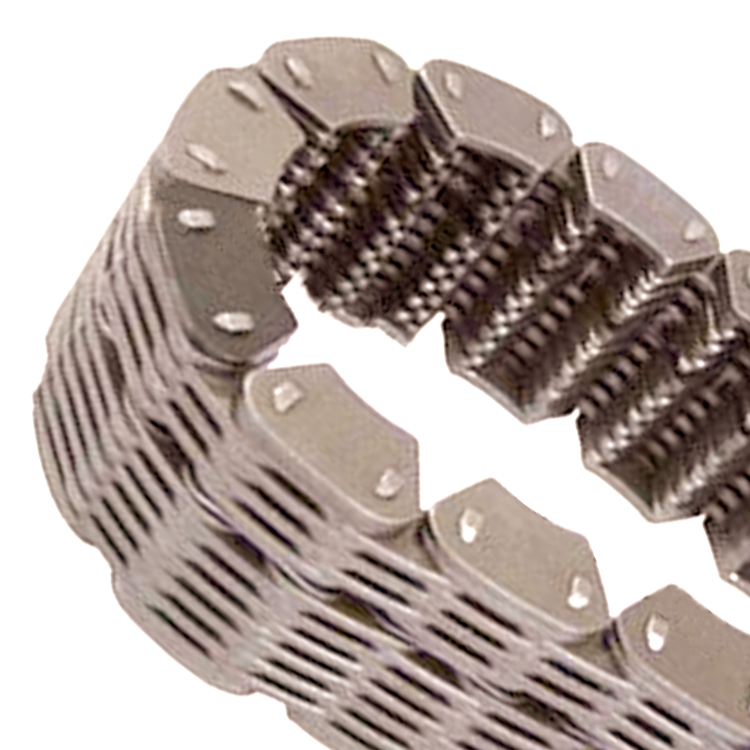

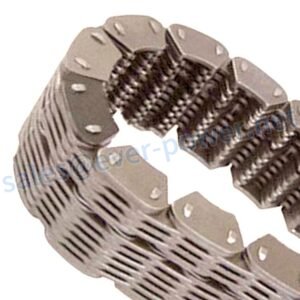

Leaf chain (BL series)

Description

[et_pb_section fb_built=”1″ _builder_version=”3.26″][et_pb_row _builder_version=”3.26″][et_pb_column _builder_version=”3.26″ type=”4_4″][et_pb_text _builder_version=”3.26″]





Chain No.		P	P	Plates Lacing	bo	d1	d2	h2	b	Q	p
ANSI	ISO GB	in	mm		mm	mm	mm	mm	mm	KN	kg/m
BL-422	LH0822	1/2″	12.7	2¡Á2	2.05	5.12	5.08	12.2	11.05	22.24	0.64
BL-423	LH0823			2¡Á3					13.16	22.24	0.8
BL-434	LH0834			3¡Á4					17.4	33.36	1.17
BL-444	LH0844			4¡Á4					19.51	44.48	1.23
BL-446	LH0846			4¡Á6					23.75	44.48	1.55
BL-446	LH0866			6¡Á6					27.99	66.72	1.79
BL-488	LH0888			8¡Á8					36.45	88.96	2.68
BL-522	LH1022	5/8″	15.875	2¡Á2	2.4	5.98	5.94	15	12.9	33.36	0.94
BL-523	LH1023			2¡Á3					15.37	33.36	1.15
BL-534	LH1034			3¡Á4					20.32	48.93	1.56
BL-544	LH1044			4¡Á4					22.78	66.72	1.79
BL-546	LH1046			4¡Á6					27.74	66.72	2.22
BL-566	LH1066			6¡Á6					32.18	100.08	2.7
BL-588	LH1088			8¡Á8					42.57	133.44	3.6
BL-622	LH1222	3/4″	19.05	2¡Á2	3.2	7.96	7.92	18	17.37	48.93	1.43
BL-623	LH1223			2¡Á3					20.73	48.93	1.82
BL-634	LH1234			3¡Á4					27.43	75.62	2.5
BL-644	LH1244			4¡Á4					30.78	97.86	2.83
BL-646	LH1246			4¡Á6					37.49	97.86	3.58
BL-666	LH1266			6¡Á6					44.2	146.79	4.27
BL-688	LH1288			8¡Á8					57.61	195.72	5.36
BL-822	LH1622	1″	25.4	2¡Á2	4.09	9.56	9.54	24.13	21.34	84.52	2.45
BL-823	LH1623			2¡Á3					25.48	84.52	2.96
BL-834	LH1634			3¡Á4					33.76	129	4.08
BL-844	LH1644			4¡Á4					37.9	169.03	4.69
BL-846	LH1646			4¡Á6					46.18	169.03	5.9
BL-866	LH1666			6¡Á6					54.46	253.54	7.08
BL-888	LH1688			8¡Á8					71.02	338.06	9.65
